4G/3G/2G Multi-function Car Tracker Free Installation Dual USB Car Charger GPS Tracker Cigarette Port Anti-theft GPS Tracker No Monthly Fee VT12
Product Parameters
|
GPS/GSM Specifications |
Function Specifications |
Appearance Specifications |
|||
|
GPS chip |
ASR1603 |
Real-time tracking |
Support |

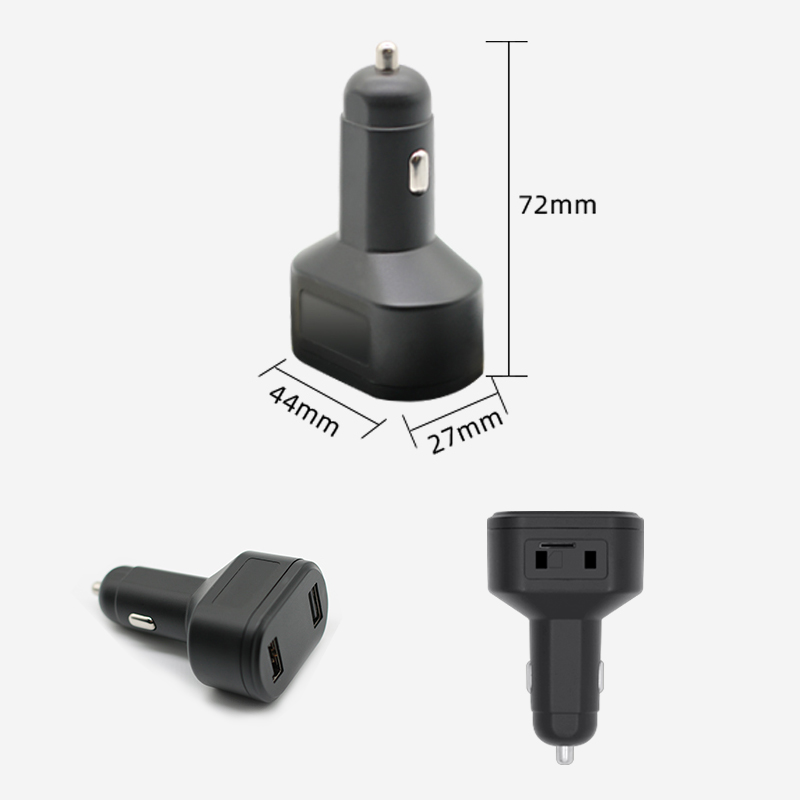

Size |
72*44*27mm |
|
Module |
SIMCOM |
Vibration alarm |
Support |
Weight |
38g |
|
Network |
4G and 2G |
Voice monitoring |
Support |
Voltage |
9~24V |
|
Accuracy |
5~10 meters |
Anti-detection |
Support |
Battery |
60mAh (optional) |
|
Cold start |
36s |
Disconnect alarm |
Support |
Working current |
25mA |
|
Hot Start |
2s |
Fence alarm |
Support |
Blind spot Cache |
5000 points |
|
Antenna |
Built-in FPC |
Remove alarm |
Support |
Waterproof level |
IP65 waterproof |
|
Storage temperature |
-35℃+70℃ |
Displacement alarm |
Support |
Power supply |
Car battery |
Product Functions
-
01
4G/3G/2G Network, Low Latency
VT12 cigarette port car charger gps tracker use ASR1603 4G module chip, more stable and reliable, supports 4G network, backward with 3G and 2G, ultra-low latency and no drift.
-
02
IP65 Waterproof
Fully enclosed waterproof rubber ring design, installed on cars for GPS tracking, daily water splashing and rain or coffee will not cause short circuit disconnection problems.
-
03
Plug and Play
VT12 not need to be like hardwired gps tracker cut wire then install, cigarette port supply power to car tracker, silent, quiet work, super camouflage as a normal USB charger.
-
04
Dual USB Fast Charging
VT12 vehicle GPS tracker directly connected to the vehicle is battery to obtain power, it can also charge mobile phone like normal dual USB with 2A fast charging charger.
-
05
GPS+LBS+AGPS Location
Support GPS, WiFi, LBS multiple positioning methods, outdoor GPS tracking accuracy 5~10 meters, LBS positioning accuracy 100~500 meters. AGPS faster positioning.
-
06
Historical Playback
Historical data store in gps global intelligent monitoring system 6 months, easy to track the wearer history location and health data including: starting point, ending point, duration, etc.
-
07
Geo Fence Alert
Set up electronic fences with different usages on vehicle gps tracking system, the car in or out will triggered geo fence alarm and uploaded to car management system.
-
08
ACC Detection
When ACC on, the car in start mode; the ACC off, the car in shutdown mode. One-click query for illegal ignition off being stolen car find back the car by longitude and latitude.
-
09
Intelligent Sleep Mode
Working current around 25mA, 3 minutes after car turned off and data uploaded, the VT12 car tracker automatically into sleep mode, the charging interface will stop power supply.
-
10
Blind Spot Re-upload
When car in without network area, car charger gps tracker data saved on flash, which able to store 5,000 GPS points. After reconnecting, the cached data upload to platform.
-
11
Voice-activated& Recording
Built-in high sensitivity pickup voice sensor, AI noise reduction microphone automatically record conversation inside the car and send to car tracking system for managers to view.
-
12
Anti-detection Alert
VT12 has anti-detection and anti-shielding functions, except 4S shops and management companies know, the install location cannot be detected by conventional GPS detector.
-
13
Vibration Alarm
Car ignition off no move, VT12 GPS tracker no monthly fee goes into sleep, any collides, knicks, or scratches and vibrates, device will send vibration alarm to tracking platform.
-
14
Displacement Alarm
When car ignition off and goes into sleep, moving (a vibration happen first) more than 500 meters, the tracker device will send a displacement alarm to the gps tracking platform.
-
15
Over Speed Alert
Built-in high-sensitivity G-sensor, besides detect vibration alarms also detect car speed. it will send an overspeed alarm to the gps tracking system for owner or admin to review.
-
16
3D Street View Map
Our gps tracking system Google map supports real time HD 3D street view map function, look around the real-time street, and check the real-time condition of the car.
-
17
Trip Report Statistics
VT12 car charger locator uploads all data such as gps, trajectory, voice, alarm, etc. to the server of the car GPS tracking management platform, and generate a visual report.
-
18
Tracking System & Apps
Our gps tracking and monitoring systems app support group management, report management, message push, etc., can be customized if there are special requirements.
-
19
Certificates
Our factory has passed ISO9001 certification, strict production and assembly process to ensure high quality products, has CE and RoHS international import and export certification.
-
20
More Inquiry
Please contact with us to get more specification or have special requirement on OEM/ODM on Jason.huang@huatenglobal.com
