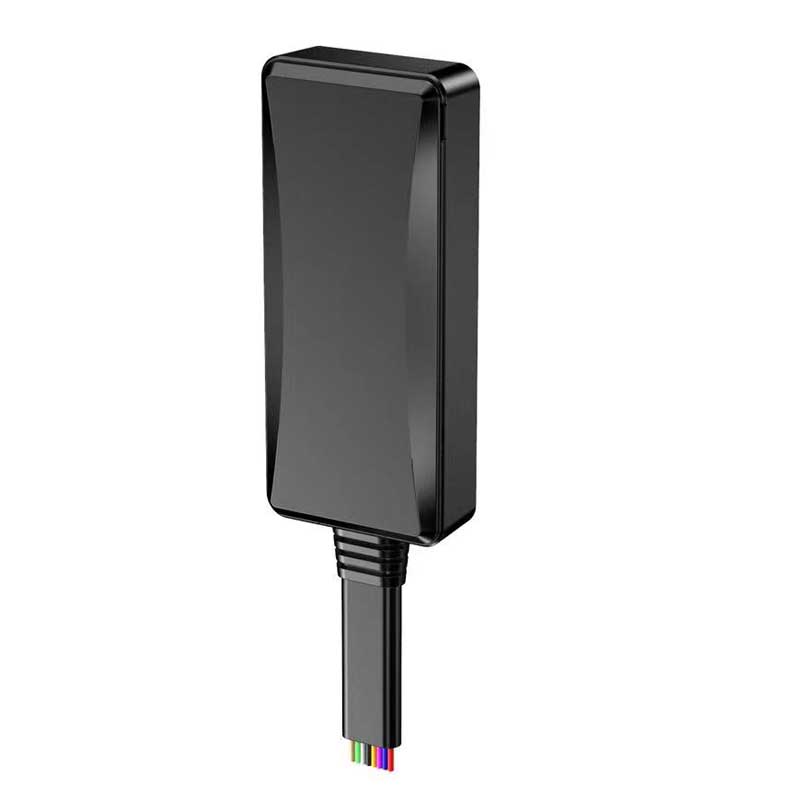

4G GPS Tracker for Car No Monthly Fee Anti-lost With RS232/RS485 Port Extra SOS Button And Microphone Relay Engine Fuel Cut Off GPS Car Tracker VT06
Product Parameters
GPS/GSM Specifications |
Function Specifications |
Appearance Specifications |
|||
GPS chip |
ZKMICRO ASR1603 |
ACC detection |
Support |
Size |
99*54*16.5mm |
Module |
Quectel EC20 |
Engine fuel cut off |
Support |
Weight |
75g |
Network |
4G/3G/2G |
Voice monitoring |
Support |
Voltage |
9~95V |
Accuracy |
5~10 meters |
Anti-detection |
Support |
Battery |
60mAh (optional) |
Cold start |
36s |
Disconnect alarm |
Support |
Working current |
25mA |
Hot Start |
2s |
Geo-fence Alarm |
Support |
Blind spot Cache |
5000 points |
Antenna |
Built-in FPC |
Vibration alarm |
Support |
Waterproof level |
IP65 |
Temperature |
-35℃+70℃ |
Displacement alarm |
Support |
Power supply |
Car battery power |
Product Functions
-
01
4G/3G/2G Network
VT06 hidden gps tracker for car use ZKMICRO ASR1603 4G module chip, also backward compatible with 3G and 2G, more stable and reliable than other common chip design.
-
02
IP65 Waterproof
The VT06 car tracker use waterproof rubber ring design, effectively protects water damage of life scenarios such as hand washing, water splashing, raining and sports sweating.
-
03
Wide Voltage 9~95V
Wide voltage 9~95V suit for cars, trucks, bus, heavy duty, truck and other vehicles with 12~24V different voltages, anti-surge instantaneous high voltage protection.
-
04
Wire Connect, Never Power Off
VT06 car tracking device physical connect and get power from vehicle battery, permanently powered off anytime, no any risk of power failure like long standby 4g gps asset tracker.
-
05
BeiDou+GPS+LBS+AGPS
Support Beidou, GPS, WiFi, LBS multiple positioning methods, Beidou and GPS accuracy are 5~10 meters; LBS accuracy are 100~500 meters; indoor using WiFi location.
-
06
History Track Playback
Historical data store in gps tracking system more than 6 months, easy to track the wearer history location and health data including: starting point, ending point, duration, etc.
-
07
Geo Fence Alarm
Set up electronic fences with different usages on gps vehicle tracking and fleet management portal, in or out will triggered alarm and uploaded to management system.
-
08
ACC Detection
VT06 hidden car tracker supports the detection of vehicle ignition switch., When the ACC is on, the vehicle is in the start mode, the ACC is off, the vehicle is in the shutdown mode.
-
09
Smart Sleep Mode
Working current around 25mA, after car ignition off and data finished uploaded to gps fleet tracking system, VT06 will automatically into sleep mode, power consumption is only 5mA.
-
10
Blind Spot Re-upload
In without network area, VT06 car tracker working, all data saved on memory, up to 5,000 GPS points, after reconnecting network, all will be sent to fleet gps tracking system.
-
11
Voice-activated Recording
Built-in high sensitivity pickup sensor, AI noise reduction microphone automatically record conversation inside the car and send to car tracking system for managers to view.
-
12
Remote Fuel Cut Off
VT06 smart bus tracker connected with an external relay support cut off engine remotely functions from gps car monitoring system, it is useless for a thief to hold the car key.
-
13
GPS Anti Detect Alarm
Anti-detection and anti-shielding functions ensure concealment performance, except the admin know installation location, even gps tracker detector cannot find out.
-
14
Light Sensor Alarm
Built-in high sensitivity light sensor, when it detected has been violently dismantled, the GPS vehicle device immediately sends the dismantled alarm to the car owner or admin.
-
15
Vibration Alarm
When car ignition off and goes into sleep, collides, knocks, or scratches and vibrates, device will send vibration alarm to car tracking device platform for owner or admin review.
-
16
Displacement Alarm
When car ignition off and goes into sleep, vehicle is moved (a vibration alarm occurs) more than 500 meters, the device will send a displacement alarm to the gps tracking platform.
-
17
Voice Alarm
Supports voice-activated alarm, when the decibel inside the car over 61Db, the VT06 geo tracker car will send an alarm to the management background and positioning APP.
-
18
Long Stay Alarm
When the 4G vehicle tracker VT06 stays in a place for more than 10 minutes, trigger alarm and device will send a long stay alarm to car gps tracker app and web platform.
-
19
Over Speed Alert
Built-in high-sensitivity G-sensor detect the speed of the car speeding if over limitation, it will send an overspeed alarm to remind vehicle owner and fleet management admin.
-
20
RS232/RS485 Port
Supports RS232 and RS485 interfaces, it can be connected to other IoT devices such as relay, SOS emergency buttons, microphones, cameras, fuel sensors, and RFID, etc.
-
21
3D Street View Map
Our gps tracking system Google map supports real time HD 3D street view map function, look around the real-time street, and check the real-time condition of the car.
-
22
Tracking System & Apps
Our fleet management system gps tracking app support group management, report management, message push, etc., can be customized if there are special requirements.
-
23
Quality and Certificates
Our factory has passed ISO9001 certification, strict production and assembly process to ensure high quality products, has CE and RoHS international import and export certification.
-
24
More Features or Inquiry
Please contact with us to get more specification or have special requirement on OEM/ODM on Jason.huang@huatenglobal.com.
