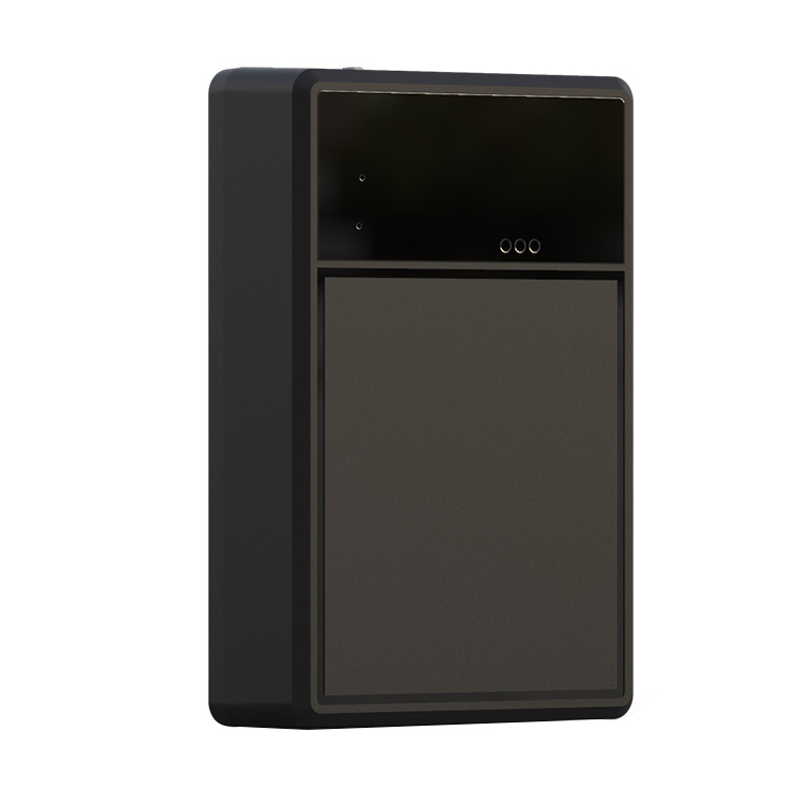

4G GPS Tracker for Tracking Assets Equipment and Vehicles 10,000mAh Recyclable Charging Battery Anti-Lost Strong Magnetic GPS Luggage Tracker No Monthly Fee LT05
Product Parameters
GPS/GSM Specifications |
Function Specifications |
Appearance Specifications |
|||
GPS chip |
ASR1603 |
Long battery life |
Support |
Size |
101*67*25mm |
GPS sensitivity |
-162Db |
Strong magnetic |
Support |
Weight |
300g |
Network frequency |
4G/3G/2G Network |
Vibration alarm |
Support |
Work voltage |
3.7V |
GPS accuracy |
5~10 meters |
Anti-detect |
Support |
Battery capacity |
10,000mAh |
Cold start |
38s |
Light alarm |
Support |
Working current |
12V/45mA |
Hot Start |
2s |
Fence Alarm |
Support |
Sleep current |
12V/15mA |
Antenna |
Built-in FPC |
Remove alarm |
Support |
Waterproof level |
IP67 waterproof |
Storage temperature |
-35℃+70℃ |
Displacement alarm |
Support |
Magnet type |
Strong RuFeB magnet |
Product Functions
-
01
4G/3G/2G Network
Using ASR1603 module chip, more stable and reliable, supports 4G network, frequency bands LTE/4G: FDD-LTE: B1/B3, TDD-LTE: B38/ B39/ B40/ B41, backward 3G and 2G.
-
02
IP67 Waterproof
LT05 gps asset tracker designed with a fully enclosed waterproof rubber ring, daily raining and swimming waterproof for motorcycles, cars, trucks, luggage or containers track.
-
03
Magnetic Free-installation
LT05 magnetic gps tracker no monthly fee has built-in NdFeB super strong magnets, multi-magnetic points, 3 times of suction force withstand over 3~5kg weight pulling force
-
04
GPS+LBS+WIFI Location
LT05 quick track asset recovery supports GPS, WiFi, LBS multiple locations, GPS tracking accuracy 5~10 meters, LBS tracking accuracy 100~500 meters, indoor using WiFi tracking.
-
05
History Track Playback
Historical data store in gps tracking system and app more than 6 months, easy to track the wearer history location and health data including: starting point, ending point, duration, etc.
-
06
Rechargeable Battery
Built-in 10,000mAh rechargeable battery, in power saving mode, uploads gps location once a day standby for three years. In working mode, continuous tracking for more than 30 days.
-
07
Geo Fence Alarm
Set up electronic fences with different usages on gps tracking car system or best gps tracking app for family, in or out will triggered alarm and uploaded to management system.
-
08
Displacement Alarm
When LT05 asset tracking device goes into sleep, moved (a vibration alarm occurs) more than 500 meters, the device will send a displacement alarm to the gps tracking platform.
-
09
Vibration Alarm
When the device no moving and goes into sleep after all data upload to server, any collides, knicks, or scratches and vibrates, device will send vibration alarm to tracking platform.
-
10
Anti-detection Alarm
LT05 4G gps tracking long battery life has anti detection and anti-shielding functions. concealment installation position cannot be detected by gps tracker detector or app.
-
11
Light Sensor Alarm
Built-in high sensitivity light sensor, when it detected has been violently take away, the LT05 gps tracker for equipment sends removing alarm to the car owner or admin platform.
-
12
Low Power, No Power Alert
If battery power lower than 20%, LT05 gps location tracker send a low battery alarm and upload it to the GPS tracking system, if battery no power, it will be report to platform.
-
13
3D Street View Map
Our gps tracking system Google map supports real time HD 3D street view map function, look around the device location photo, and check the real-time condition of the device.
-
14
GPS Tracking System
How to send my location? White label gps tracking systems has web platform, Android and iOS software, can send gps location on apps and web to each other can be customized.
-
15
Certificates
Our factory has passed ISO9001 certificates, strict production and assembly process to ensure high quality gps products, CE and RoHS international import and export certification.
-
16
More Inquiry
Please contact with us to get more specification or have special requirement on OEM/ODM on Jason.huang@huatenglobal.com
